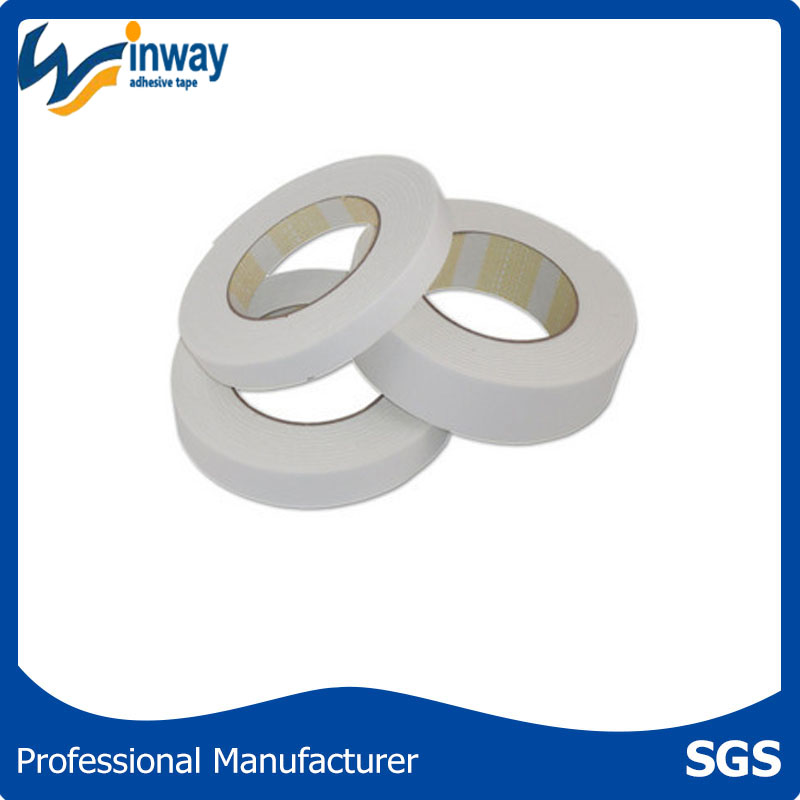

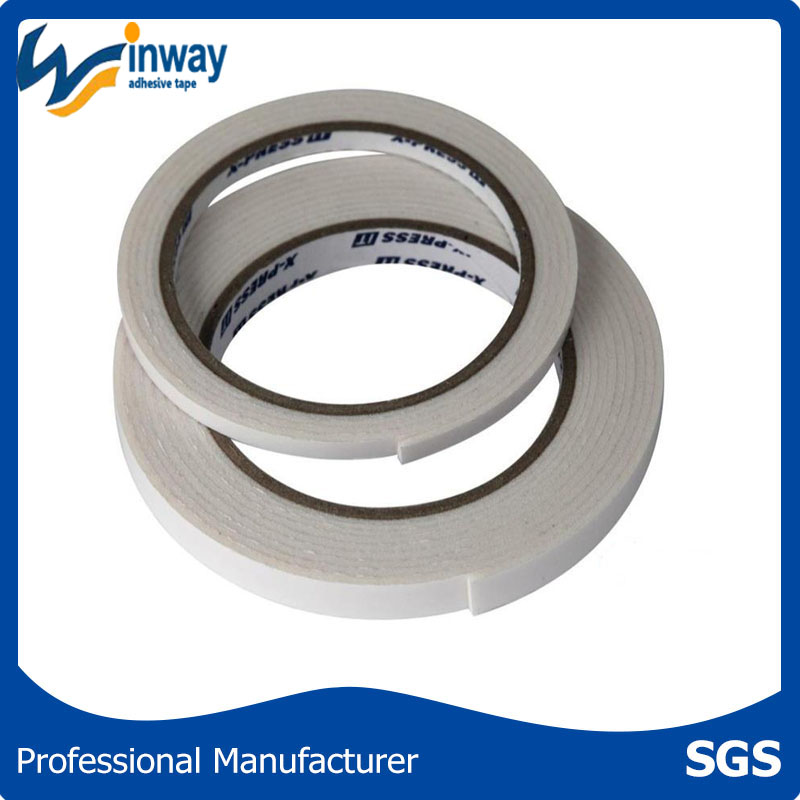

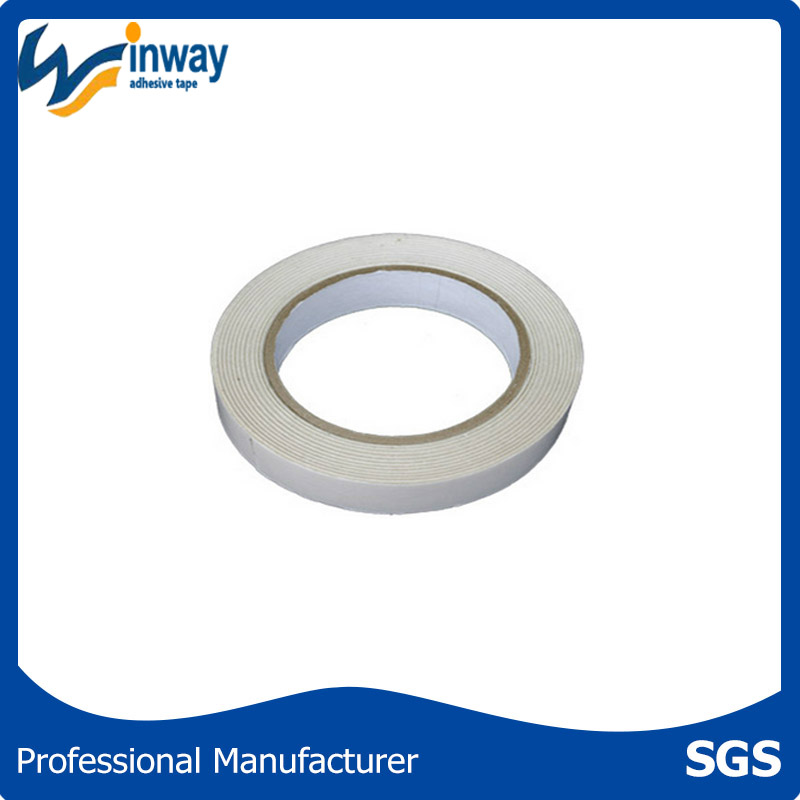

2mm Thickness Waterproof PE EVA Foam Tape
|
Jumbo Roll Size
|
1040MM*300M
|
|
Log Roll/Cut size
|
As per customer requirements
|
|
Foam thickness
|
1mm,2mm or customized
|
|
Slit Roll/Finished Product
|
Width
|
12mm,16mm,18mm,19mm,20mm,24mm,25mm,30mm,36mm,38mm,48mm,50mm
|
|
Length
|
20mm,30mm,40mm,50mm,60mm,70mm,80mm,90mm,100mm or customized.
|
Data1:
|
Total Thickness(mm)
|
Backing
|
Glue
|
InitialTack(Ball Tesk)
|
Peel Adhesion
|
Holding power
|
Feature
|
|
1.0±0.1
|
Black PE Foam
|
Acrylic Adhesive
|
<=10cm
|
>=1.5KG/25mm
|
>=24hrs
|
High holding power and high shear strength;Good climate resistance and temperature-resistant property
|
|
1.0±0.1
|
Black PE Foam
|
Acrylic Adhesive
|
>=1.5KG/25mm
|
>=24hrs
|
|
1.0±0.1
|
Black EVA Foam
|
Acrylic Adhesive
|
|
>=15M/in
|
>=12hrs
|
Strong adhesion,easy to use;EVA foam can stick to uneven surface and seal the cracks,having the function of sealing,anti-vibration,cushion, antishock.
|
|
1.0±0.1
|
Black EVA Foam
|
Acrylic Adhesive
|
>=15M/in
|
>=12hrs
|
Data2:
|
Sort:
|
Double Sided Foam Tape
|
Type:F-001
|
|
Structure:
|
EVA Foam/Acrylic Adhesive/Green(Red)PE release film
|
|
Performance:
|
|
Item
|
Unit
|
Date
|
Test Standard
|
|
Total thickness
|
Mm
|
1.0±0.1
|
ASTMD-3652
|
|
180°peel adhesion
|
(N/in)
|
>15
|
PSTC-101
|
|
Holding power(to stainless steel)
|
h
|
>24
|
PSTC-107
|
|
Feature:
Strong adhesion,easy to use;EVA foam can stick to uneven surface and seal the cracks,having the function of sealing,anti-vibration,cushion,anti-shock
|
|
Applications:
Sticking of rims in auto rear view mirror,medical devices,furniture decoration and photo frames. Sticking of varieties of metal and plastic badges and signs. Fixing and assembly application in household appliances and automobiles; other special sticking and joint applications.
|
|
Color: Green, Red
|
|
Product Sizes:
(1) Jumbo roll Size:
(2)Cut size:
|
1040MM*300M
As per customer requirements
|
|
