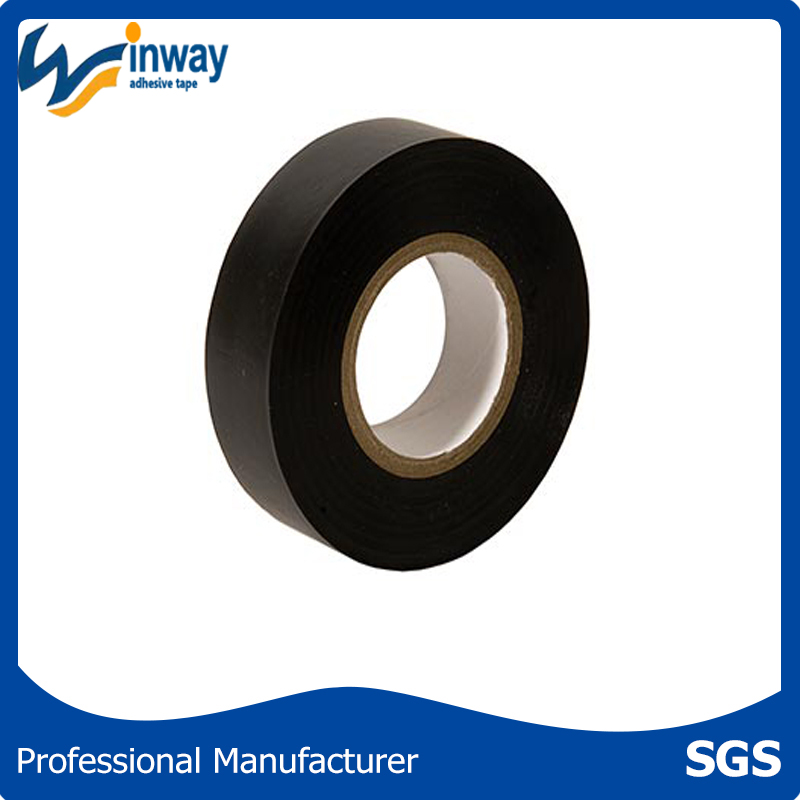

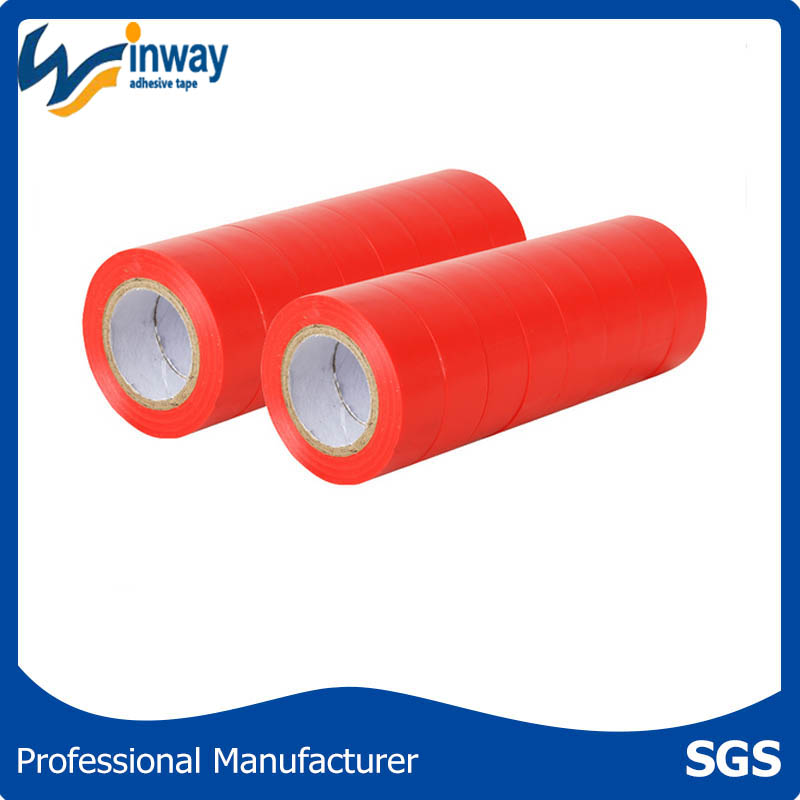

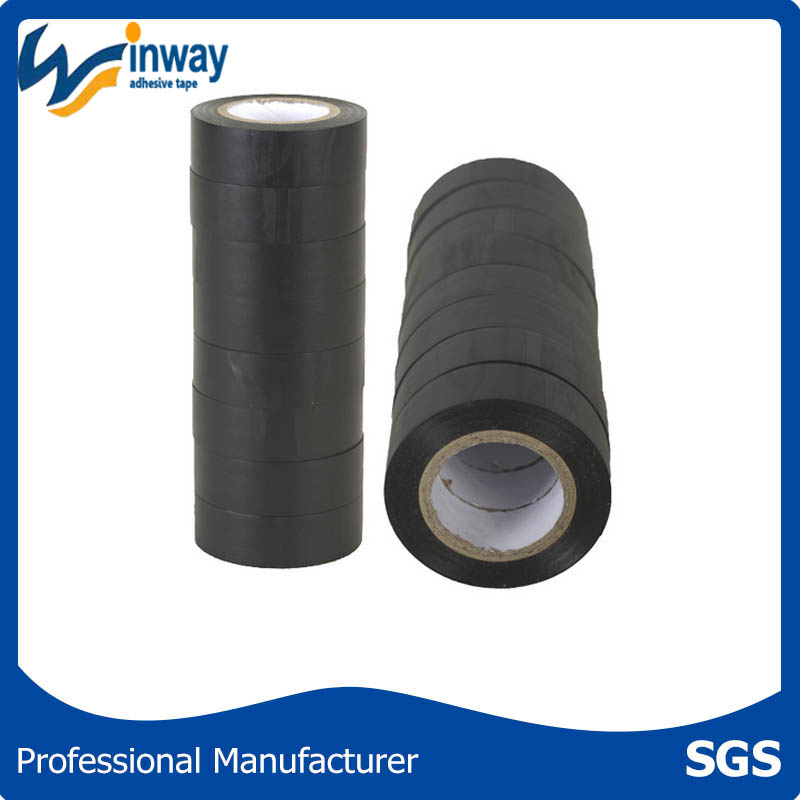

PVC Electrical Insulation Tape

Product name：PVC Electrical Insulation Tape

Item：PVC Electrical Insulation Tape-012

Details：

PVC Electrical Insulation Tape
130mic PVC Insulation Adhesive Tape

PVC Electrical Insulation Tape

Thickness:

0.10mm,0.11mm, 0.12mm, 0.13mm, 0.15mm, 0.165mm, 0.18mm, 0.20mm, 0.25mm, 0.40mm

Tape Width:

12mm,15mm,16mm,17mm,18mm,19mm,20mm,24mm.38mm.48mm.50mm

Tape Length:

4m, 7m, 7.5m, 8m, 10m,18m,20m,30m,33m

Code	Backing	Adhesive	Thickness	Adhesion	Tensile	Elongation	Temperature	Voltage	Features &
			(mm)	(N/cm)	(N/cm)	(%)	(℃)	Breakdown	Application
								(KV/mm)
100D	PVC	rubber	0.1	1.5	14	160	80	≥40	Used for wrapping electric wires and cables etc.
110D	PVC	rubber	0.11	1.5	15	160	80	≥40
130D	PVC	rubber	0.13	1.5	17	160	80	≥40
150D	PVC	rubber	0.15	1.5	20	180	80	≥40
165D	PVC	rubber	0.165	1.5	22	180	80	≥40	Be up to the UL standard, used for wrapping electric wires and cables etc.
180D	PVC	rubber	0.18	1.5	26	180	80	≥40
190D	PVC	rubber	0.19	1.5	28	200	80	≥40
200D	PVC	rubber	0.2	1.5	28	200	80	≥40
100Z	PVC	rubber	0.1	1.5	14	160	80	≥40	Flame retardant, used for wrapping electric wires, automotive wire harness and cables ect.
110Z	PVC	rubber	0.11	1.5	15	160	80	≥40
130Z	PVC	rubber	0.13	1.5	17	160	80	≥40
150Z	PVC	rubber	0.15	1.5	20	180	80	≥40
165Z	PVC	rubber	0.165	1.5	22	180	80	≥40	Be up to the UL standard, flame retardant, used for wrapping electric wires, automotive wires harness and cables etc.
180Z	PVC	rubber	0.18	1.5	26	180	80	≥40
190Z	PVC	rubber	0.19	1.5	28	180	80	≥40
200Z	PVC	rubber	0.2	1.5	28	200	80	≥40

ITEM	SIZE		QTY
PVC Insulation Tape	19mm 5m x 0.13mm	10 rolls/shrink	500 rolls/carton
	19mm 10m x 0.13mm	10 rolls/shrink	400 rolls/carton
	19mm 20m x 0.13mm	10 rolls/shrink	300 rolls/carton
	18mm x 20m x 0.13mm	10 rolls/shrink	500 rolls/carton
Please Note	This data just for reference.
